An ideal warehouse storage system can double operational space without increasing rent, which is essential for businesses operating in high-cost logistics hubs. GXM Shelving and Racking presents an Integrated Heavy-Duty Pallet Racking & Steel Mezzanine Platform, designed specifically for facilities facing space limitations and expanding inventory demands.

Maximizing Vertical Storage Efficiency

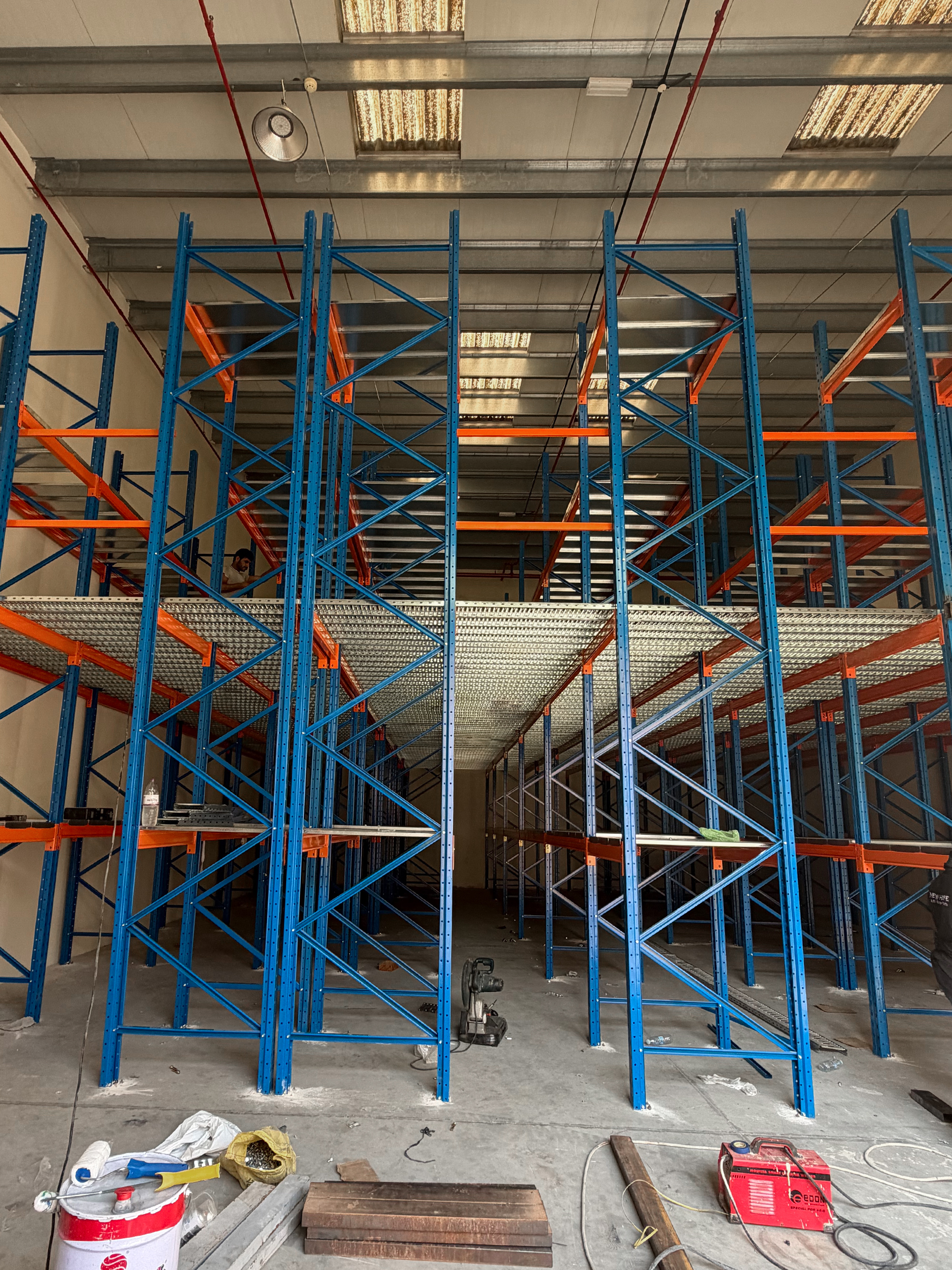

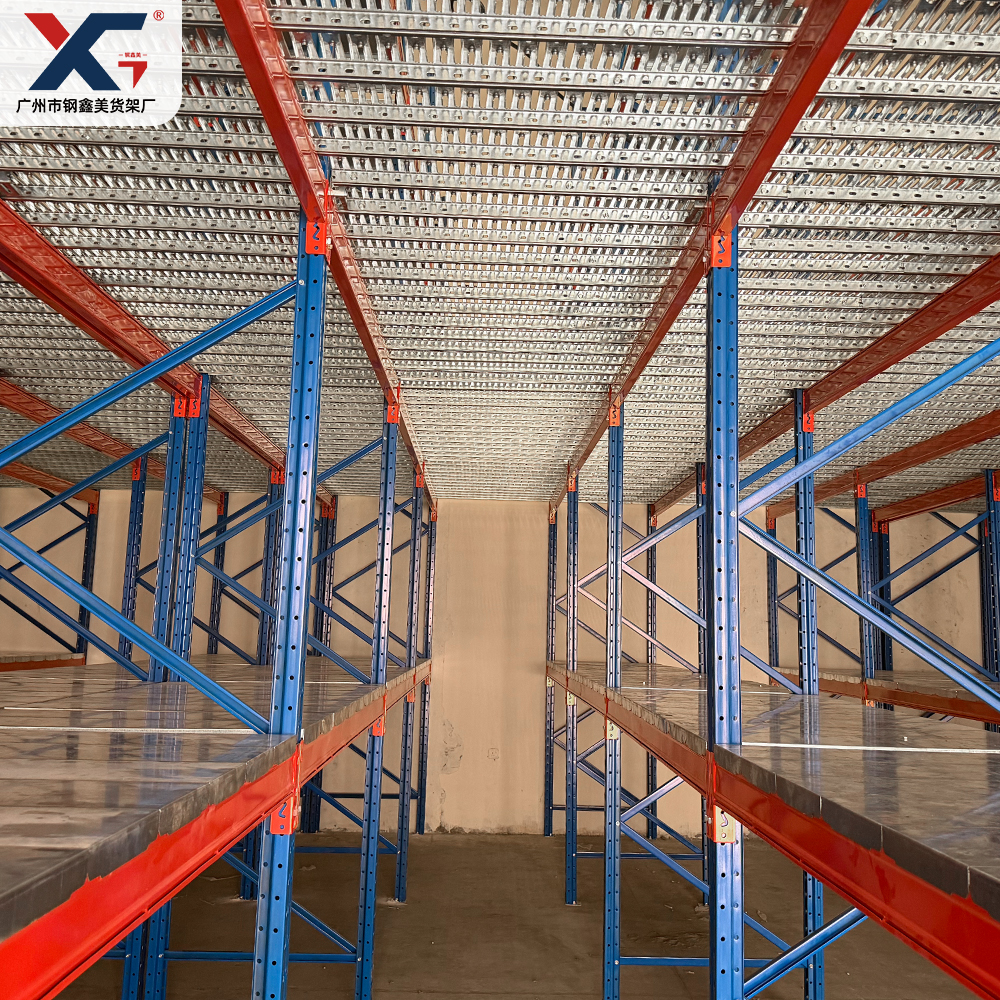

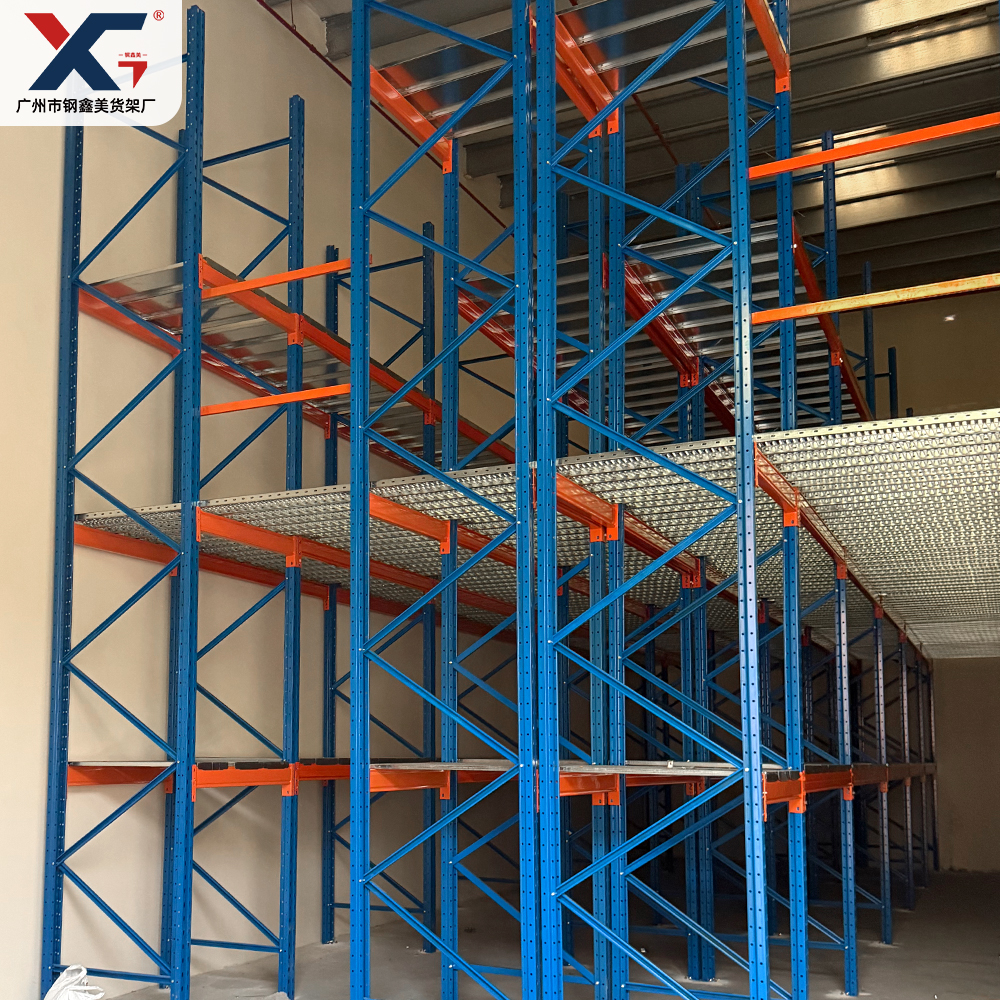

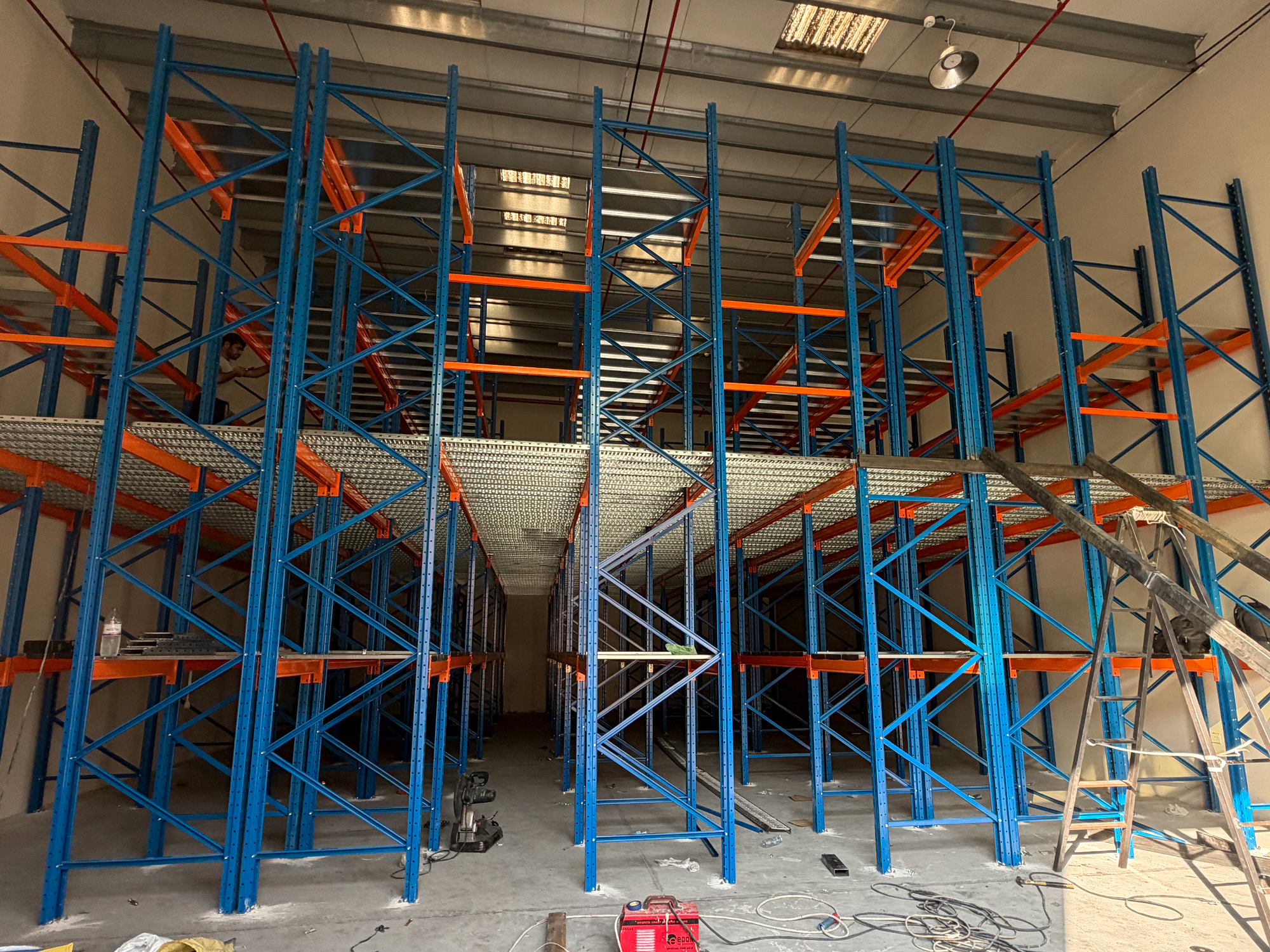

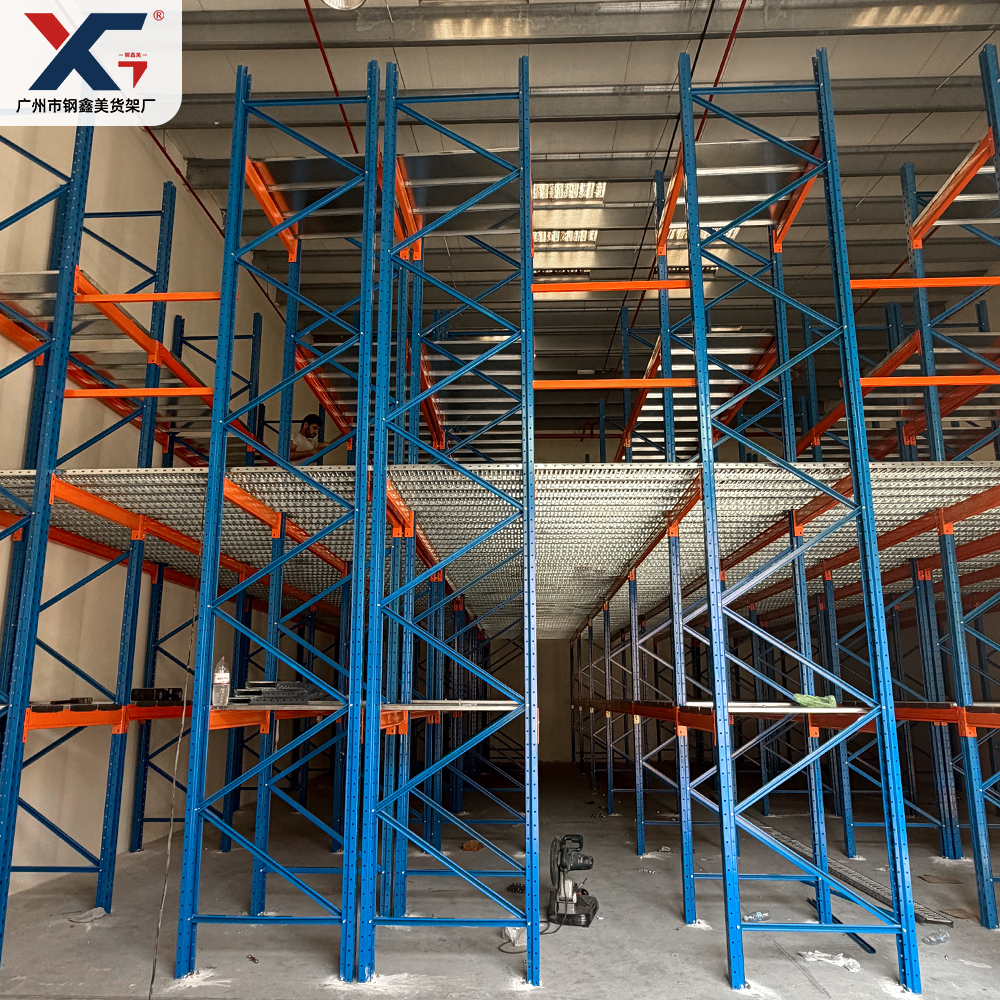

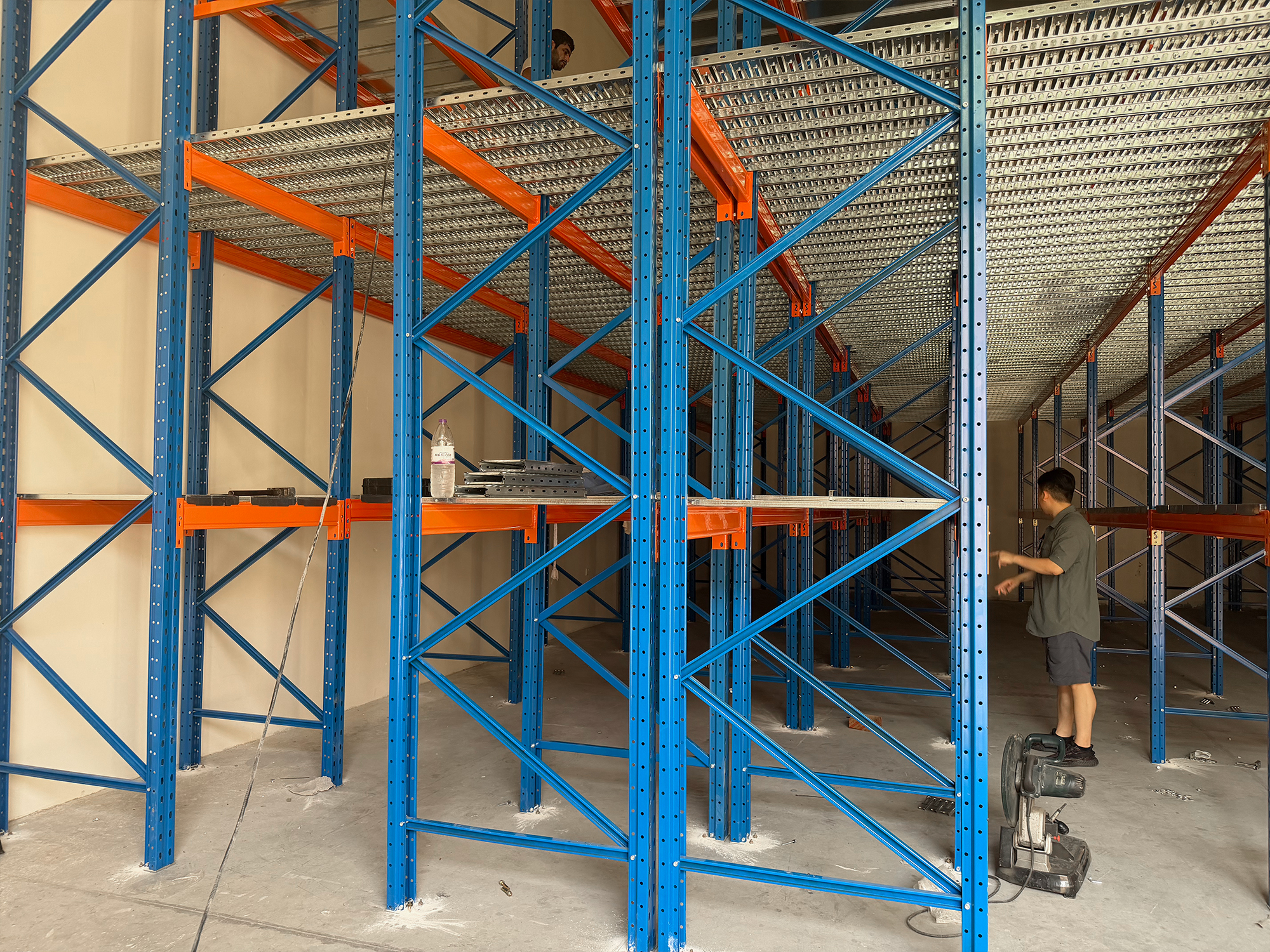

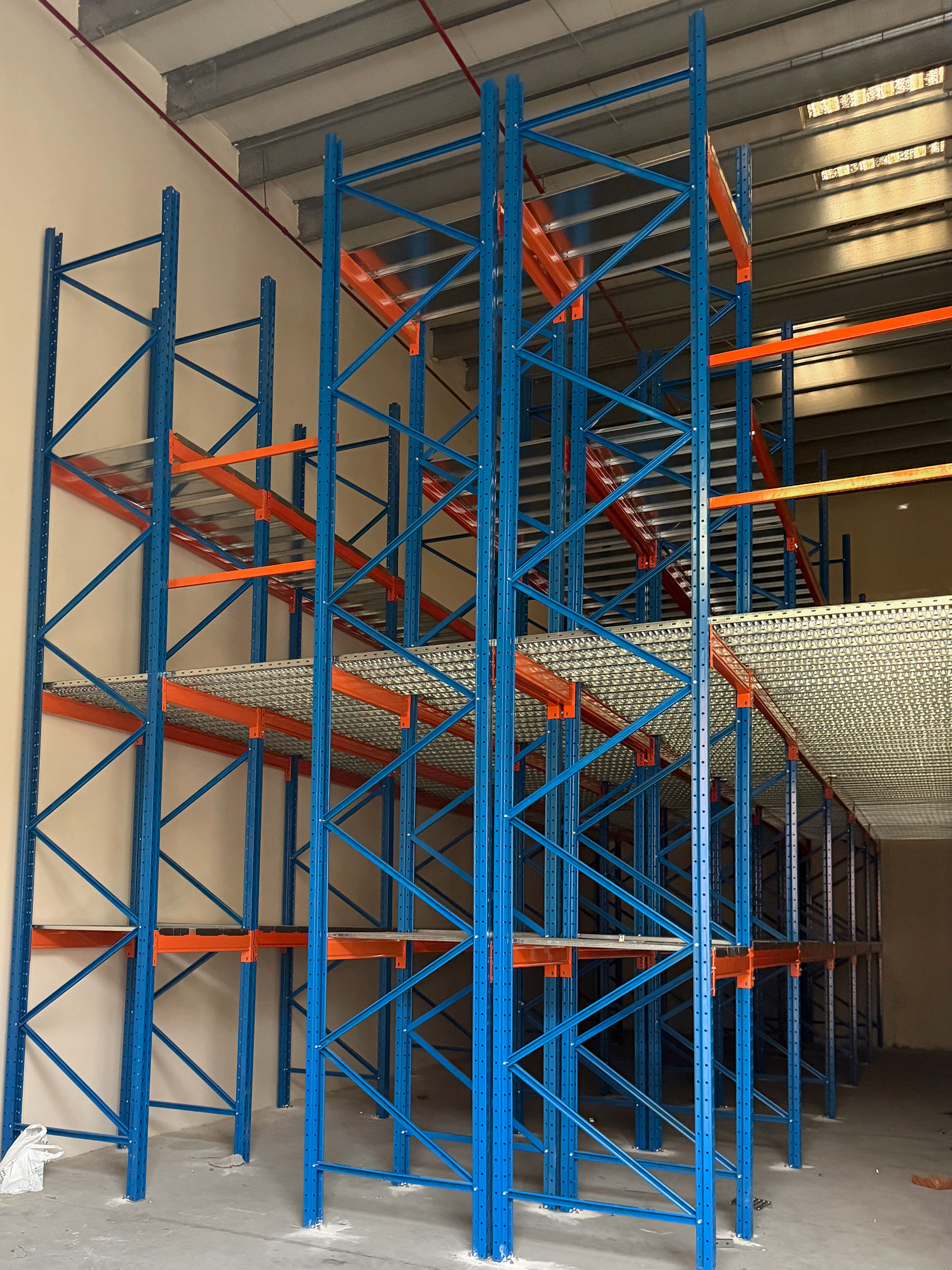

When floor space is limited, the key to scaling warehouse operations is vertical expansion. GXM’s custom-engineered solution integrates heavy-duty pallet racking directly with a steel structural mezzanine platform. This dual-tier system creates a multi-functional storage environment that transforms a single-floor facility into a highly productive, two-level operational hub.

• Lower Level Heavy-Duty Pallet Racking: Built to support direct forklift access, facilitating efficient high-density storage and fast turnover for heavy palletized loads.

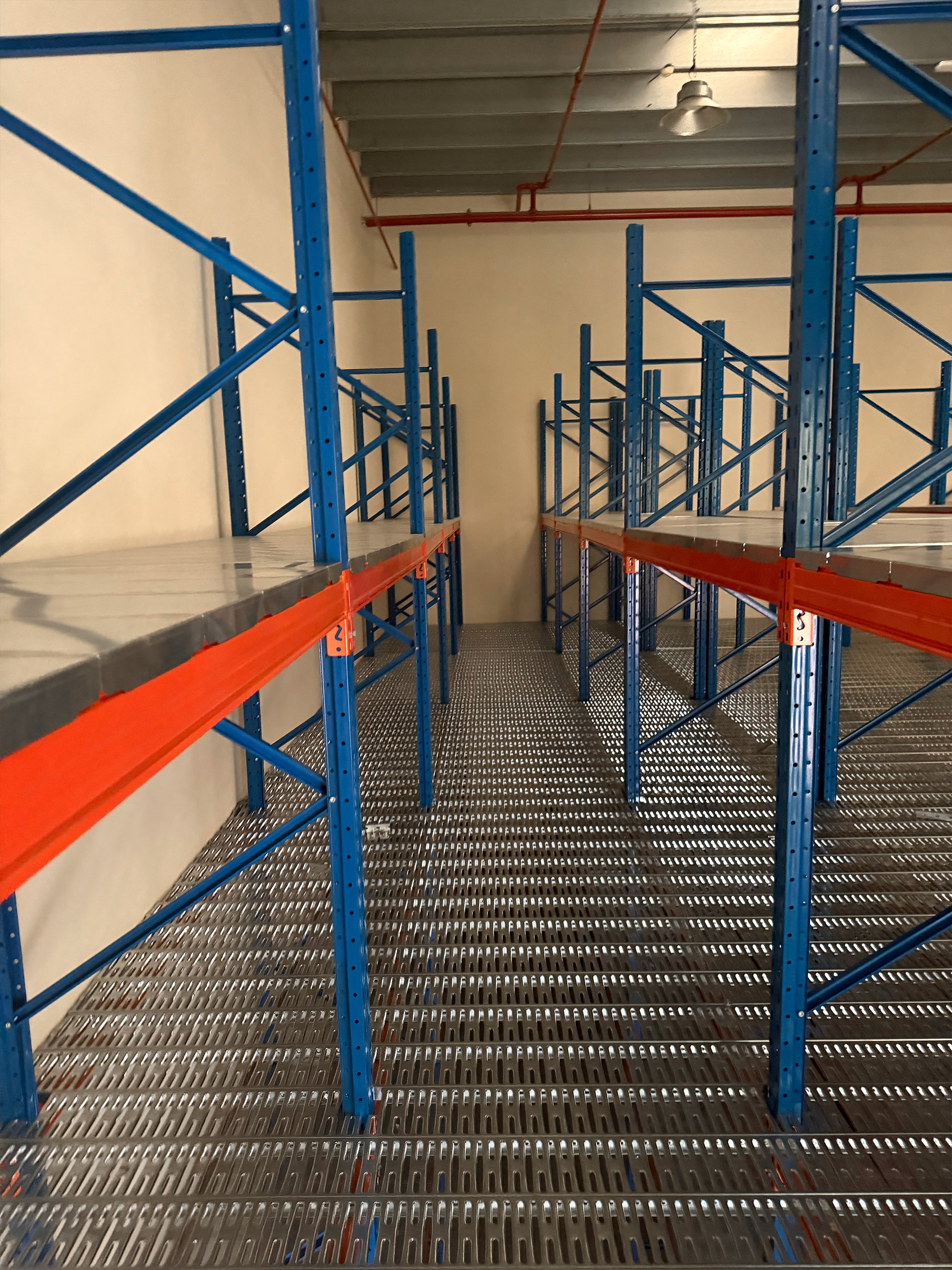

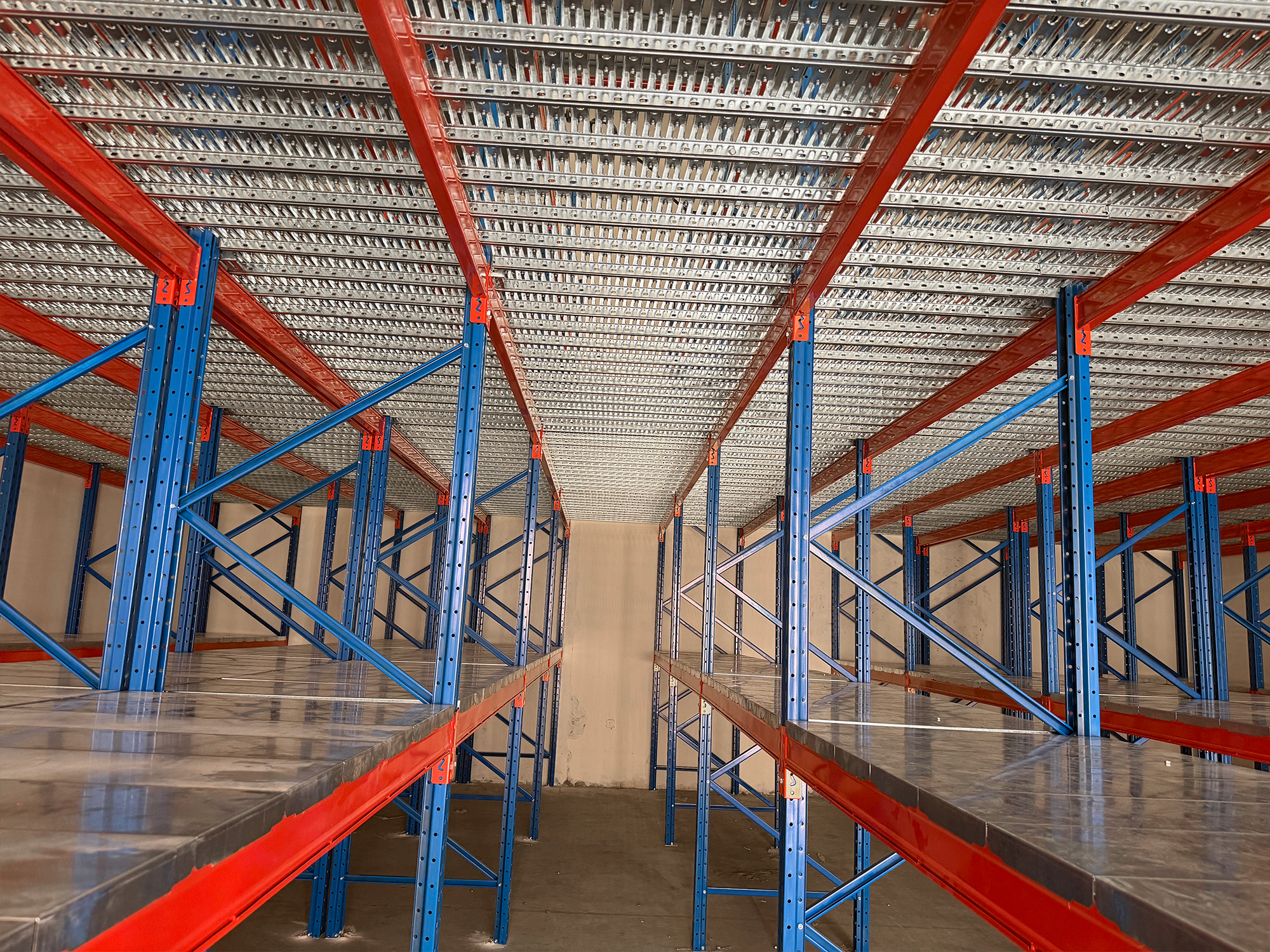

• Upper Level Steel Mezzanine Platform: Features a smooth, heavy-duty floor deck that serves as an expansive second-story workspace ideal for manual handling, item classification, order picking, and overflow staging.

• Free Site Visit & Consultation: Our local Dubai engineers visit your warehouse for technical measurements.

• Tailored CAD/3D Design: We create optimized layouts according to your ceiling height, column grid, and loading needs.

• Factory Direct Manufacturing: Precision manufacturing at our Guangzhou facility under strict ISO quality control.

• Professional Local Installation: Fast, safe, and clean assembly handled by our trained UAE installation team.

• After-Sales & Warranty Support: Direct face-to-face service and long-term structural guarantee right here in the Emirates.

• Factory Direct Pricing + Local UAE Support: Save costs with our direct-from-factory production line in Guangzhou, backed by our physical office and expert team in Ras Al Khor, Dubai.

• Free On-Site Measurement & CAD Layout: Our Dubai team comes directly to your facility for accurate dimensions, load assessment, and 2D/3D storage design.

• High Load Capacity & Safety Standard: Engineered from Q235B high-tensile steel, supporting loads from 300 kg/sqm to over 1,000 kg/sqm.

• Dubai Fire & Safety Ready: Designed to seamlessly integrate with Dubai Civil Defense (DCD) requirements, including sprinkler system clearance, fire-proof steel decking, and mesh panels.

• Complete Turnkey Service: Design $\rightarrow$ Fabrication $\rightarrow$ Sea Logistics $\rightarrow$ On-Site Installation $\rightarrow$ Maintenance.

● Key Features & Advantages

1.  100% Authority Approval Ready (DM & Trakhees Compliant) Our mezzanine floors are designed as completely freestanding, structurally independent steel systems. They do not rely on or alter your existing warehouse main pillars, complying perfectly with the building safety laws of Dubai Municipality and Trakhees free zone authorities.

2.  DCD-Compliant Fire Safety Design We calculate precise column grids and upright spacings to easily accommodate under-mezzanine fire sprinkler lines and smoke detectors required by Dubai Civil Defense (DCD). Our layouts guarantee the mandatory 450mm clearance from the highest storage tier to the top sprinkler heads.

3.  Heavy Load Capacity & High-Tensile Steel Manufactured using certified premium Q235B high-tensile steel, our platforms comfortably support uniform live loads from 300kg/m² up to 1500kg/m² (fully meeting the Dubai commercial standard of 5 KN/m²).

4.  BIM (Revit) & CAD Engineering Support To support your local UAE approved structural consultant, we provide detailed AutoCAD layout drawings, structural load charts, and BIM (Revit) 3D models (mandatory for new JAFZA structural approvals) to expedite your permit applications.

5.  Anti-Corrosion Finish for Gulf Climate All structural components undergo advanced thermo-setting powder coating or hot-dip galvanization, ensuring superior resistance to high humidity and temperature coastal environments like Jebel Ali, Sharjah, and Dammam.

6.This system has been successfully installed and approved in JAFZA, Dubai, meeting all local civil defence, DM, and Trakhees audit requirements.

● Components & Safety Accessories

Every GXM Mezzanine Floor system comes with integrated safety features to meet strict international occupational health and safety (EHS) and local civil defense guidelines:

• Modular Columns & Uprights: High load-bearing vertical structures with floor anchoring plates for maximum earthquake and impact resistance.




• Main & Secondary Beams: Interlocking cold-rolled or hot-rolled beams that provide a flat, rigid grid for floor stability and zero deflection.

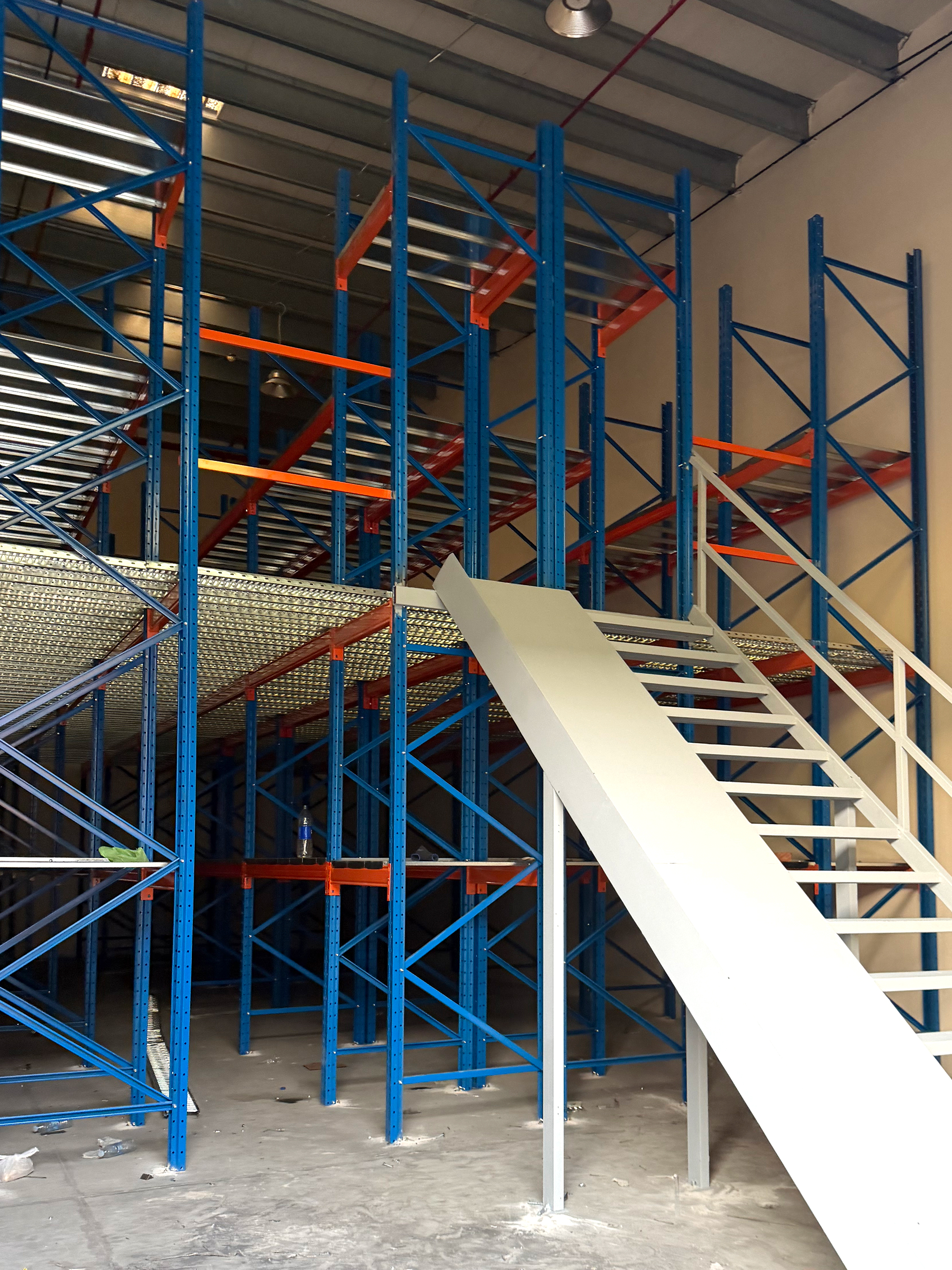

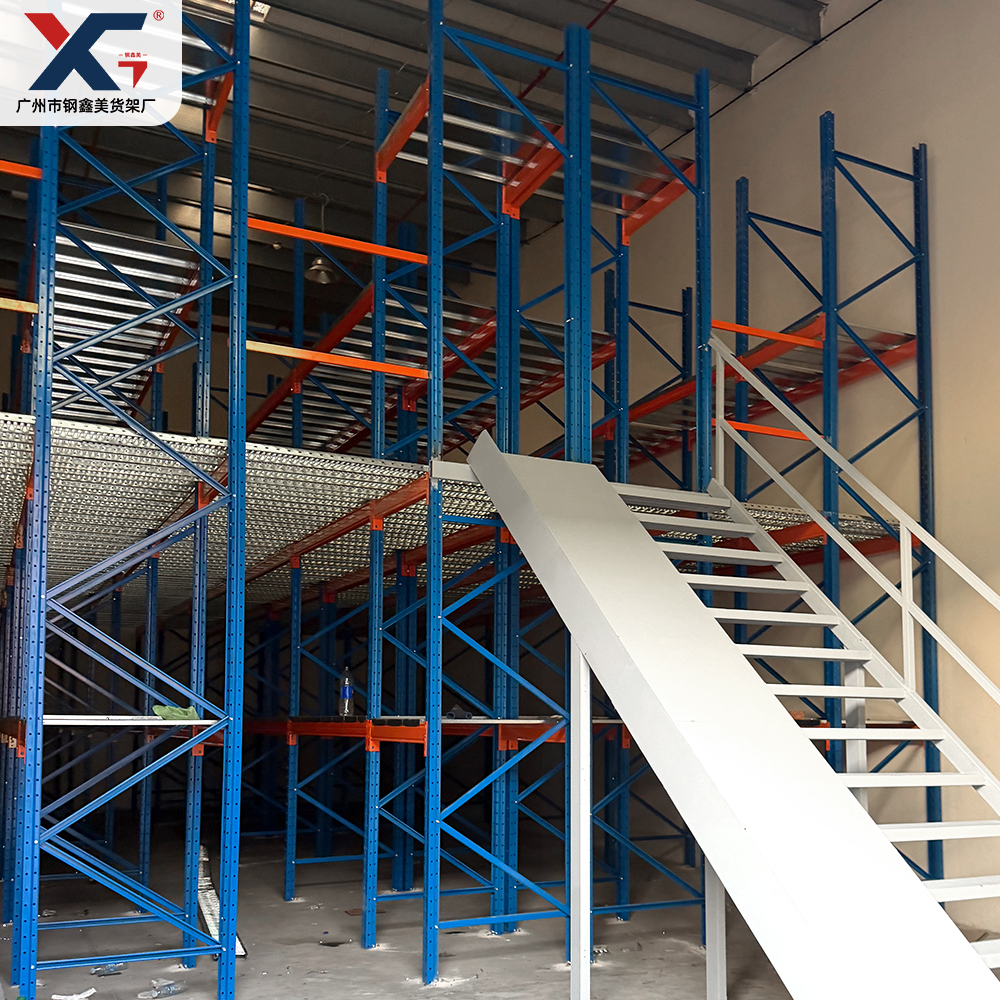

• Ergonomic Industrial Staircases: Designed with optimum slope angles, non-slip treads, and double-sided handrails for worker safety.




• Overhead Pallet Safety Gates: Standard pivoting or sliding loading gates that allow forklifts to place heavy pallets safely onto the platform without exposing workers to fall hazards.

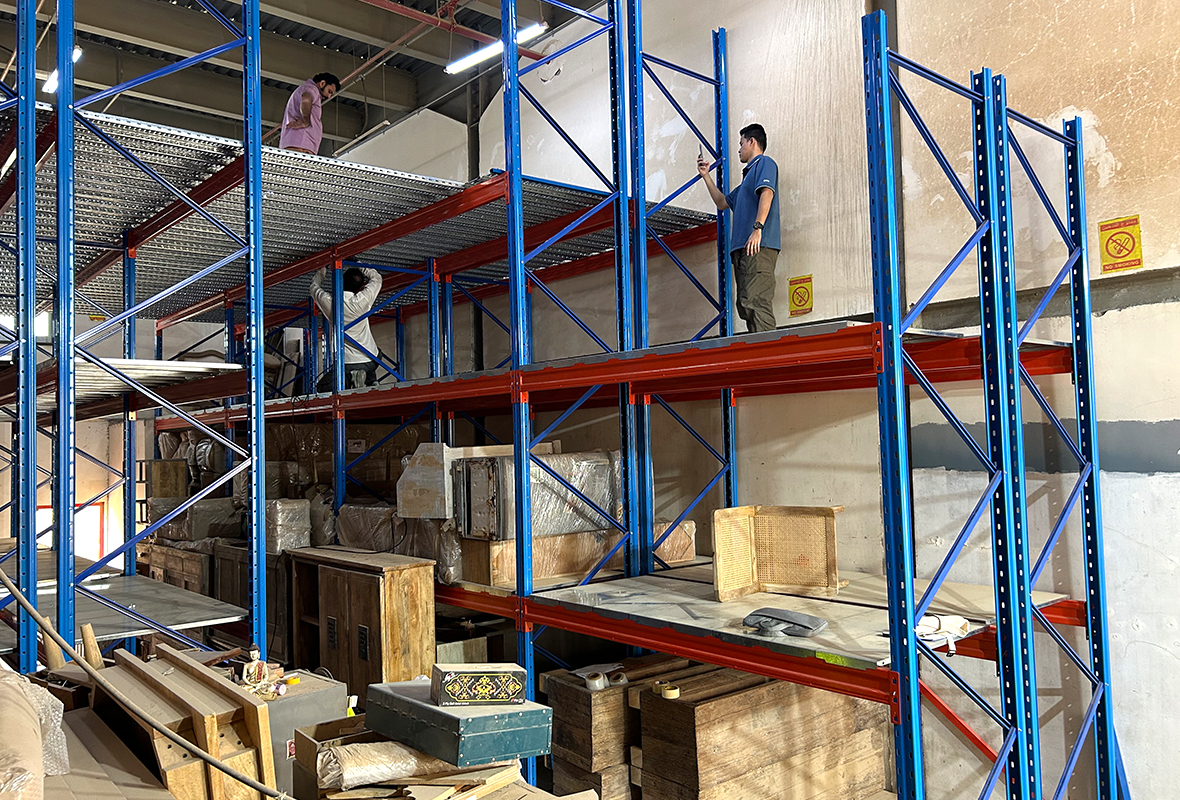

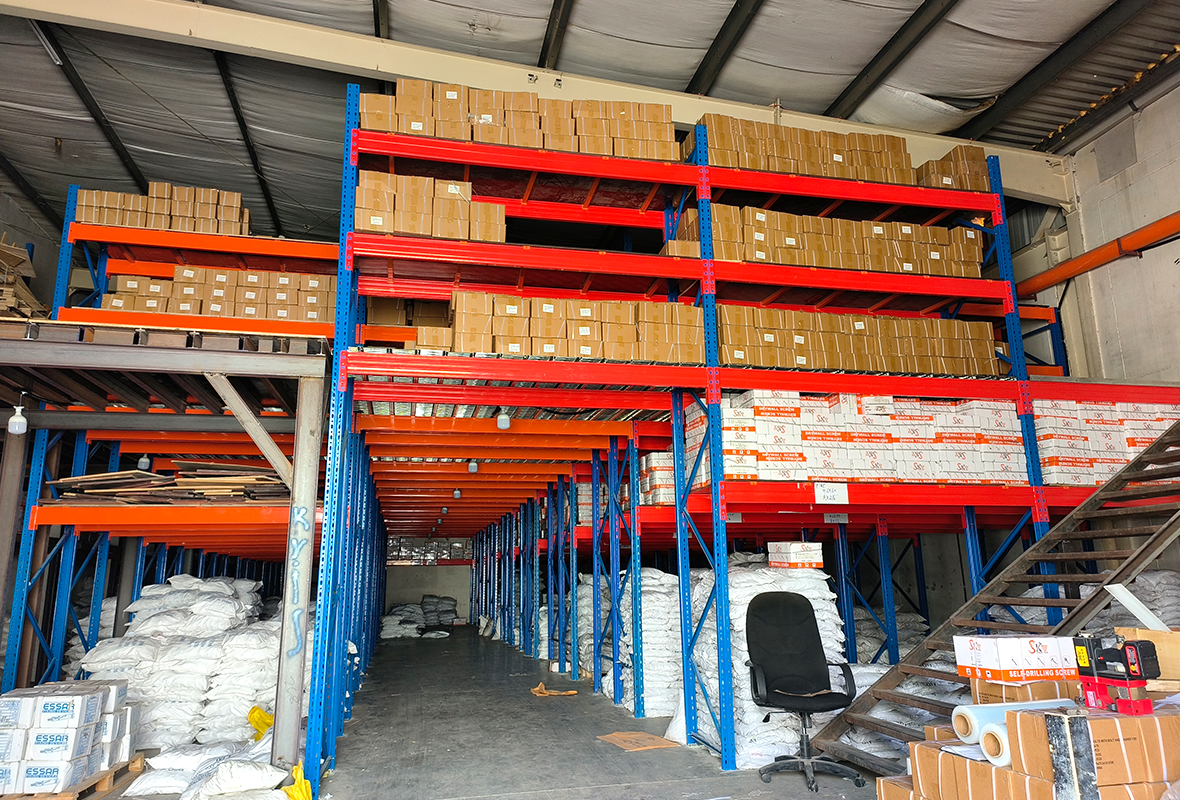

● Customer cooperation cases

Our Factory：

The GXM factory is located in Guangzhou, Guangdong Province, China. We have various mechanical equipment, such as punching machines, stamping machines, bending machines, welding machines, etc. Our products have won the trust of our customers with excellent quality, scientific design, exquisite craftsmanship, reasonable prices, and thoughtful service.
