High-Density Warehouse Transformation: Custom Drive-In Racking Case Study in Saudi Arabia

As the logistics and industrial sectors in Saudi Arabia continue to experience rapid growth, optimizing warehouse storage efficiency has become a top operational priority for modern enterprises. Recently, an esteemed client in Saudi Arabia approached our team with an urgent warehouse expansion mandate. Facing limited footprint availability alongside an escalating inventory volume, the client required an innovative, high-density storage layout that could maximize vertical capacity while streamlining everyday material handling operations.

Our company responded rapidly to the client's request. To ensure a precision-engineered solution, we dispatched a specialized technical team directly to the customer's facility in Saudi Arabia for an intensive on-site field survey. By conducting thorough measurements and analyzing structural parameters, our engineering team evaluated critical operational variables, including total clear height, facility footprint layout, forklift turn radiuses, traffic flow routes, inventory retrieval frequencies, and slab loading limits.

Project Key Specifications:

• Location: Saudi Arabia

• Warehouse Footprint: 1,000 Square Meters (sqm)

• Storage Solution: Heavy-Duty Drive-In Racking System

• Vertical Density: 3 Tiers (High-Density Storage Configuration)

• Load Capacity: 300 kg / Pallet

• Overall Frame Height: 7,425 mm

• Pallet Entry Dimensions: 1,400 mm × 1,200 mm

• Safety Feature: Heavy-Duty Anti-Collision Column Protectors

Tailored Engineering & Solution Design

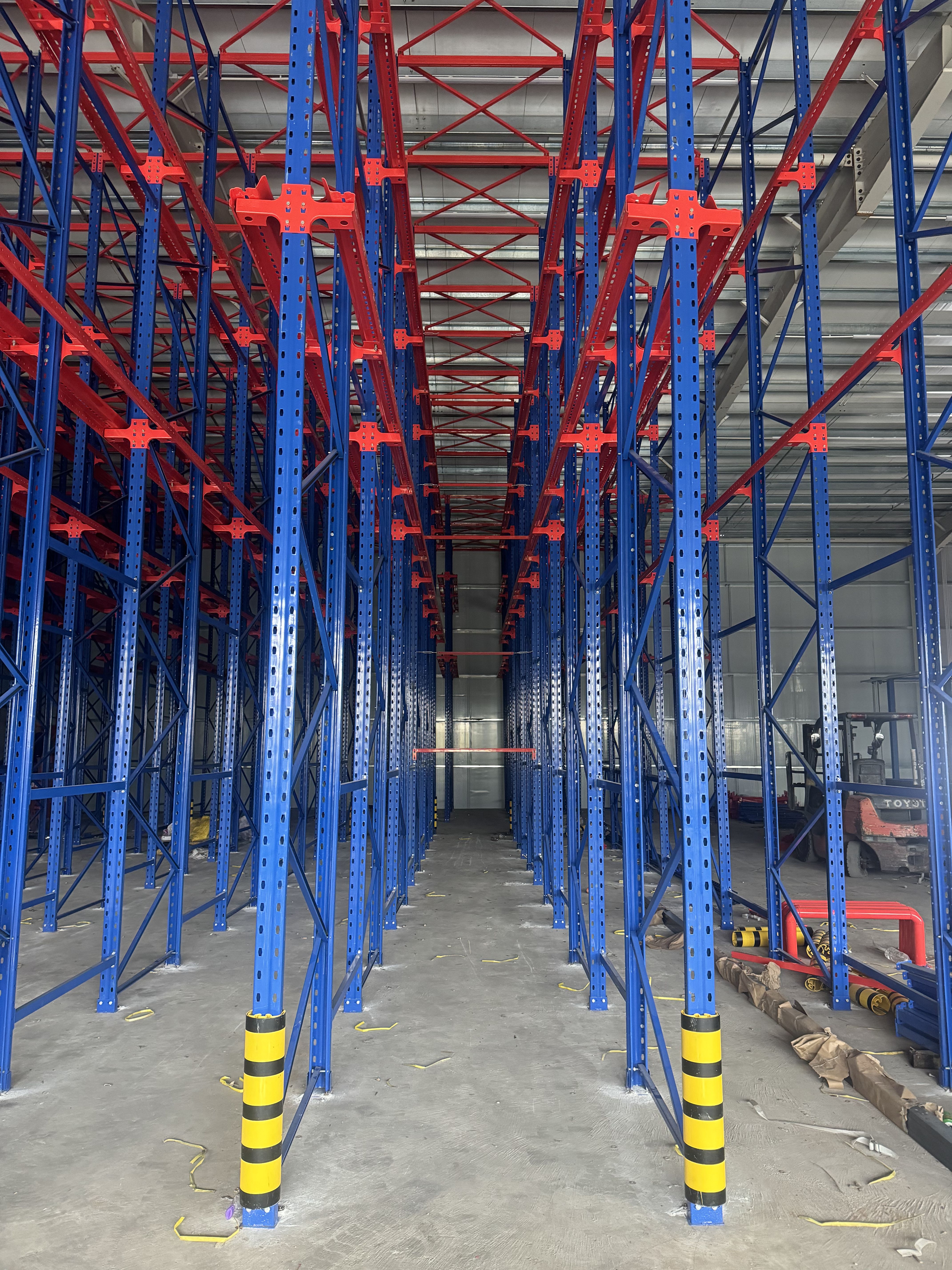

Following the preliminary assessment, our engineering department designed a customized, high-density Drive-In Racking System tailored specifically to the client's operational environment. Drive-In racking is the ideal solution for facilities storing large volumes of homogenous goods, as it eliminates unnecessary aisle space required by standard selective pallet racks. Forklifts drive directly into the racking lanes to deposit and retrieve pallets on continuous support rails, achieving unprecedented floor-space efficiency.

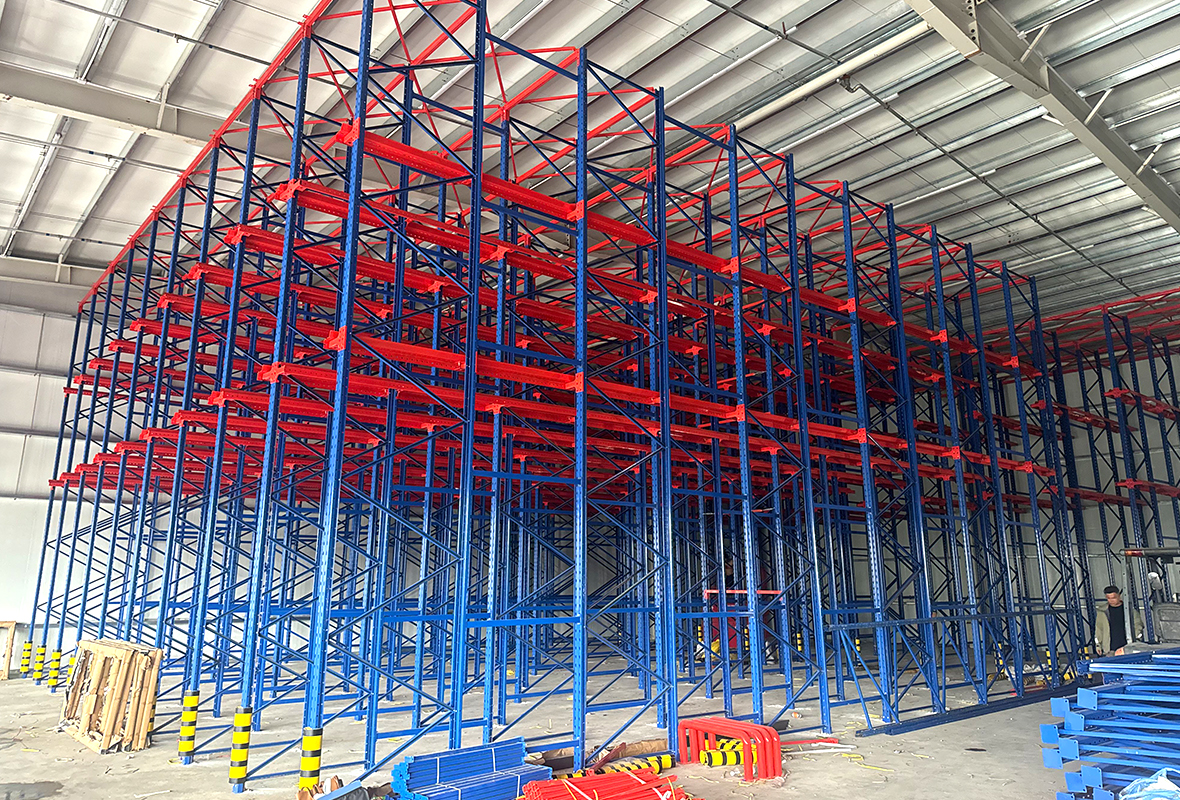

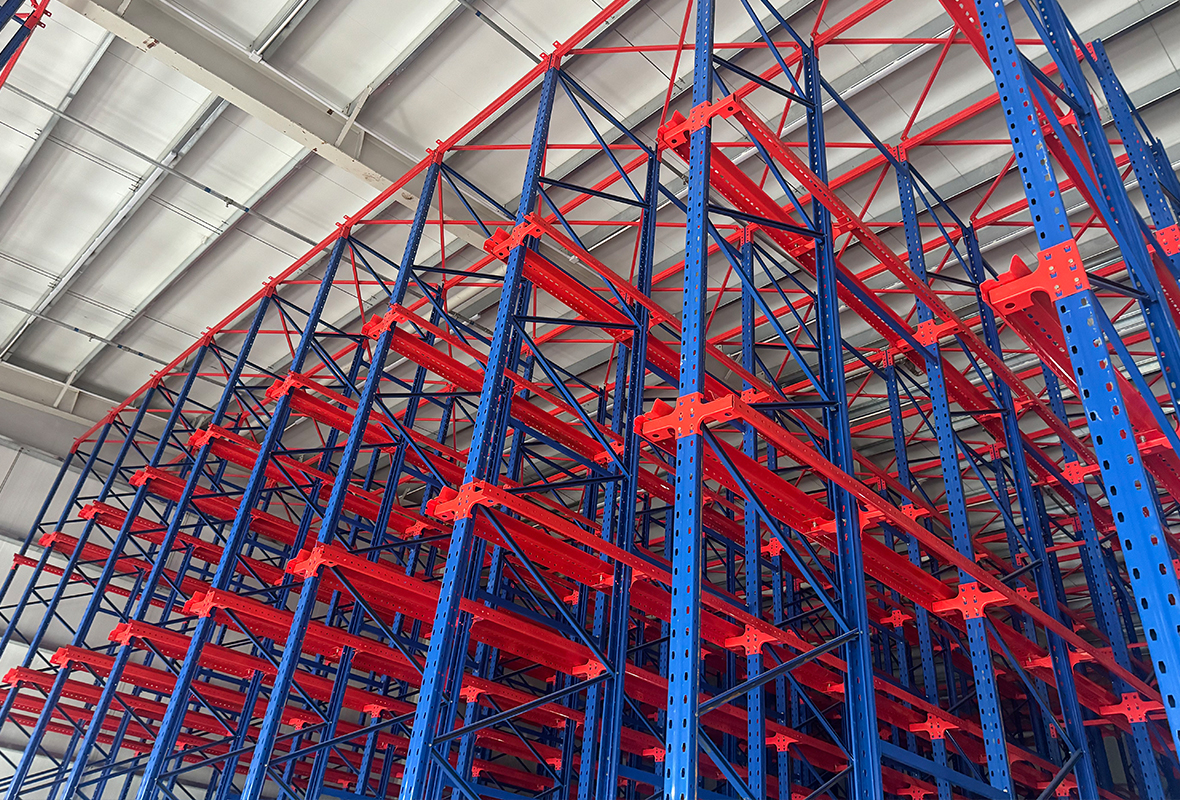

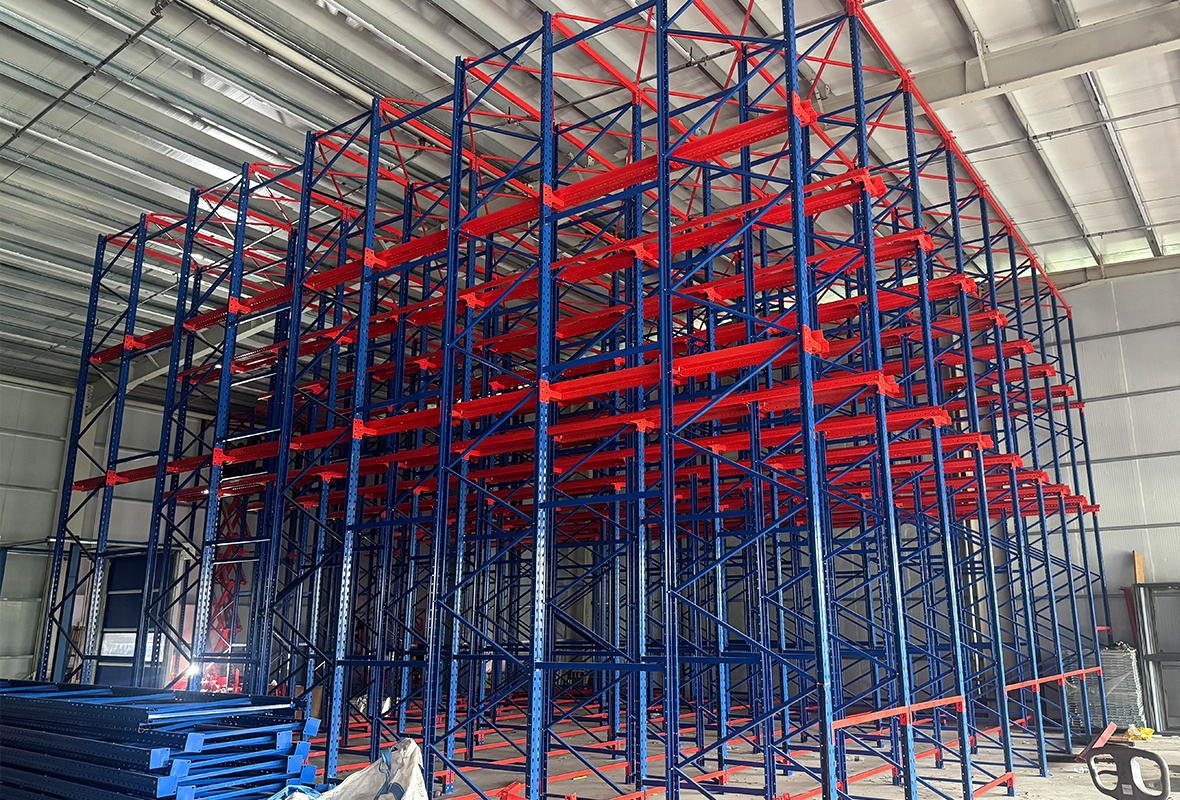

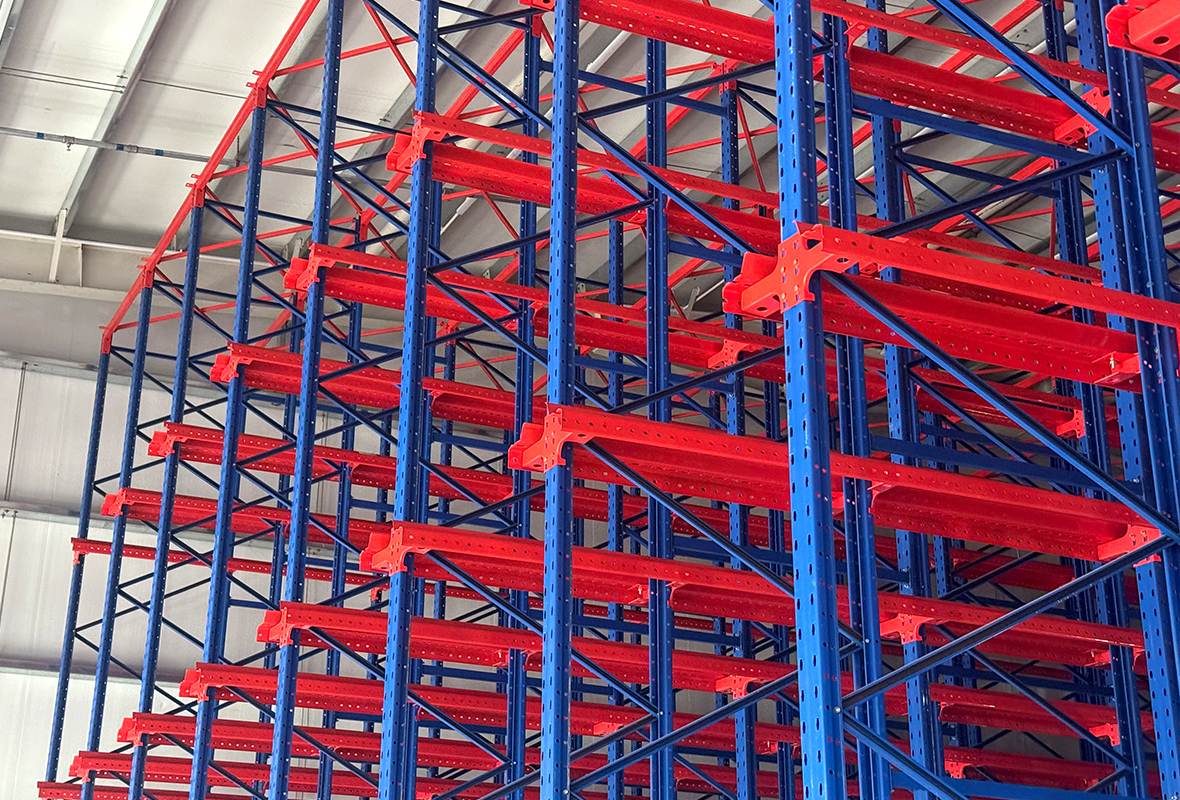

The system engineered for this 1,000-square-meter facility stands at an impressive height of 7,425 mm across 3 vertical levels. Designed around standard pallet dimensions with a 1,400mm entry direction and 1,200mm depth, the layout guarantees seamless entry and exit for specialized reach trucks and forklifts. Each pallet position is rated for a uniform distributed load of 300 kg, offering structural stability perfectly balanced with the client's specific cargo profile.

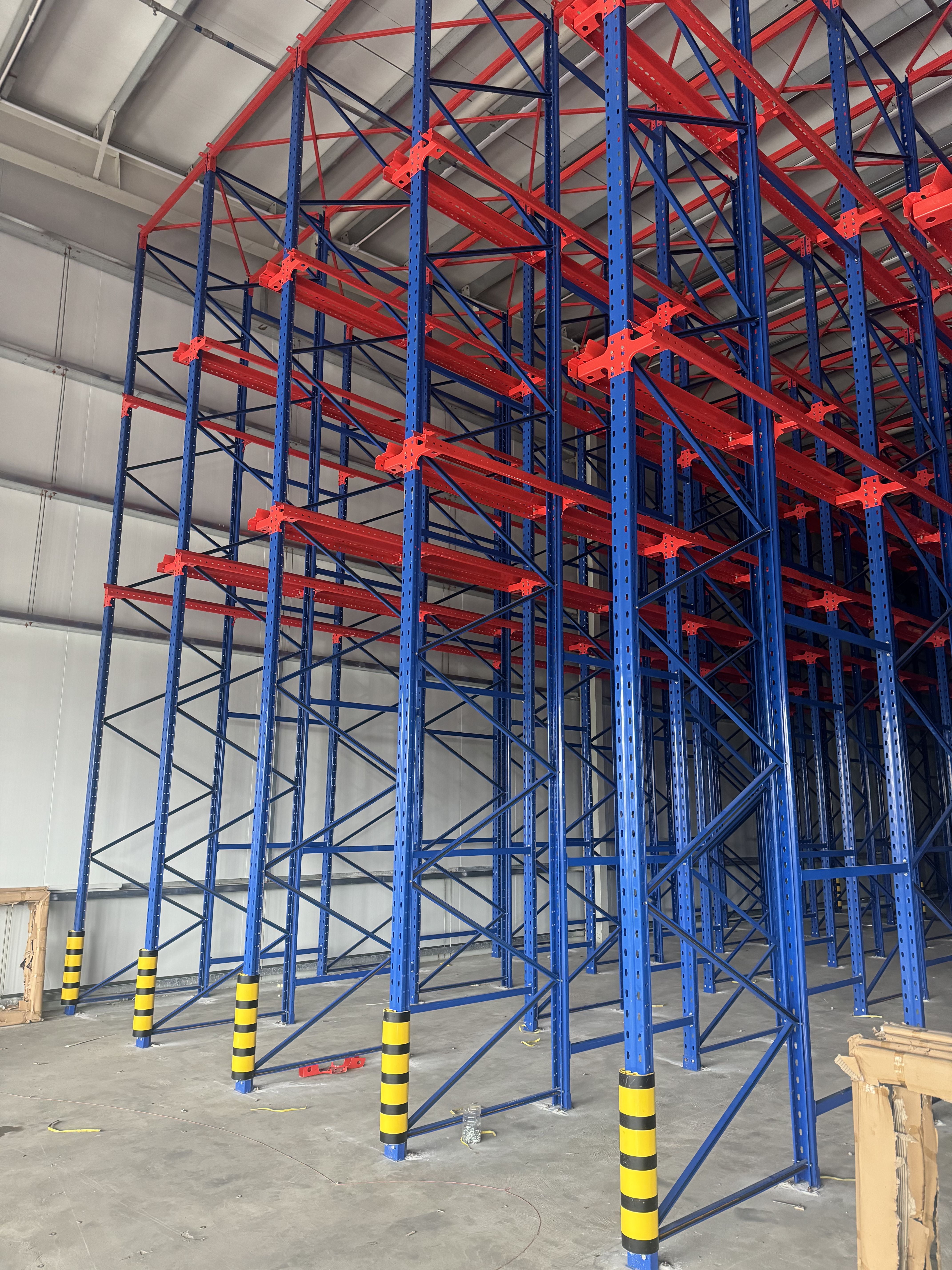

To mitigate the risk of operational impacts caused by forklifts navigating inside the narrow storage lanes, our engineers integrated heavy-duty anti-collision column protectors at all critical upright intersections and entry points. These safety components absorb impact energy, protecting the main upright frames and drastically increasing system service life while minimizing maintenance costs.

Client Satisfaction & Value Delivered

When presented with the comprehensive engineering blueprint, spatial 3D models, and operational simulation, the client expressed high satisfaction with both our rapid response time and the tailored precision of the proposed solution. The hybrid balance between extreme spatial efficiency and real-world practicality perfectly satisfied their expansion goals.

By implementing this bespoke Drive-In Racking System, the Saudi Arabia facility successfully tripled its vertical storage capacity within the same 1,000 sqm footprint, ensuring smooth forklift workflows, enhanced structural safety, and maximum return on investment for years to come.
